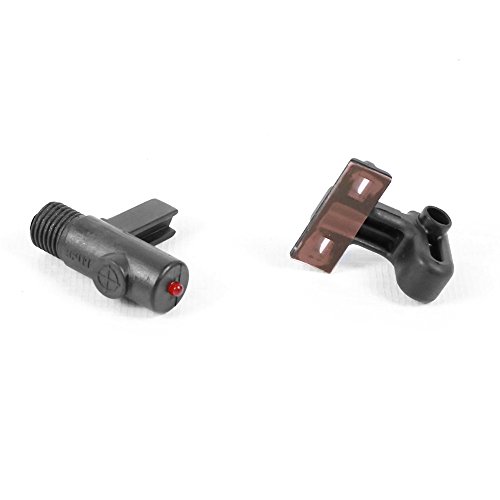

Bafang Mid Motor Speed Sensor Speed Detection Electric Bike Accessary Bicycle Electronic Components

Core Data

Type: Speed Sensor

Signals (Pulses/Cycle): 1

Input Voltage(DCV): 4.2 – 5.5

Operation Temperature: -20 – 45℃

Weight (g): 19

Mounting Parameters

Mounting Position: Chain Stay

Cable Length(mm), Connector Type: 80 M3.10

Induction Distance(mm): 5

Tests & Certifications

IP: IP 65

Certifications: EN 15194 / ROHS

Product Features

• The BAFANG speed sensor for reliable speed measurement is ideally matched to all BAFANG drive systems.
• It makes for an accurate support of the overall system – no matter for which application.
• The sensor facilitates thus a user-oriented adaptation of the drive system.
• The sensor is protected against contact and ingress of water and dirt and complies with IP 65.
